In establishing a full line-up of electrified vehicles, Toyota has been progressing its plan to introduce 15 BEV models by 2025, including seven new BEV models of the Toyota bZ series. In its development of BEVs, Toyota has taken two distinct approaches based on the idea of utilizing the advantages of BEVs, considering CO2 reductions from LCA. Toyota bZ4X is being readied for launch.
The first seeks to realize “mobility for all,” with a focus on small-capacity, short-distance, ultra-compact BEVs with establishing new business models such as commercialization of battery reuse and recycling. The Toyota C+pod, which was launched in December 2020, is one example.
In contrast, the new Toyota bZ series of BEVs takes on a “human-centered” approach aimed at widespread use in regions such as China, the U.S., and Europe, where there is significant demand for BEVs, and where there is a large supply of renewable electricity. “bZ” stands for “beyond Zero,” and incorporates the desire to provide customers with value that exceeds mere “zero emissions.” Toyota intends to launch BEVs that will be welcomed by all customers. The Toyota bZ series models will be built on new BEV dedicated platforms with features as follows:
Practical cruising range that considers the operating environment, so that customers can choose our products with peace of mind
Open and freestyle interior and uniquely designed exterior utilizing BEV packaging
Development of the Toyota bZ series is based on BEV-dedicated platforms that can be used with multiple variations in terms of size and design. Since it is difficult for Toyota to prepare such a wide range of choices by itself, it is jointly developing the series with partners who boast expertise in various fields. By coordinating with policies that encourage the use of renewable energies, Toyota hopes to expand the range of choice for customers, and contribute to the further reduction of CO2 emissions.
Toyota and Subaru jointly developed the Toyota bZ4X, taking advantage of the two companies’ unique strengths
The Toyota bZ4X is an SUV BEV jointly developed with Toyota’s partner, Subaru. This new vehicle adopts the e-TNGA BEV-dedicated platform that was jointly developed by the two companies; it takes advantage of the strength of Toyota, which boasts expertise in vehicle electrification, and Subaru, which possesses outstanding AWD technologies, and realizes driving performance that is both comfortable and enjoyable. The characteristics of the Toyota bZ4X are outlined below.

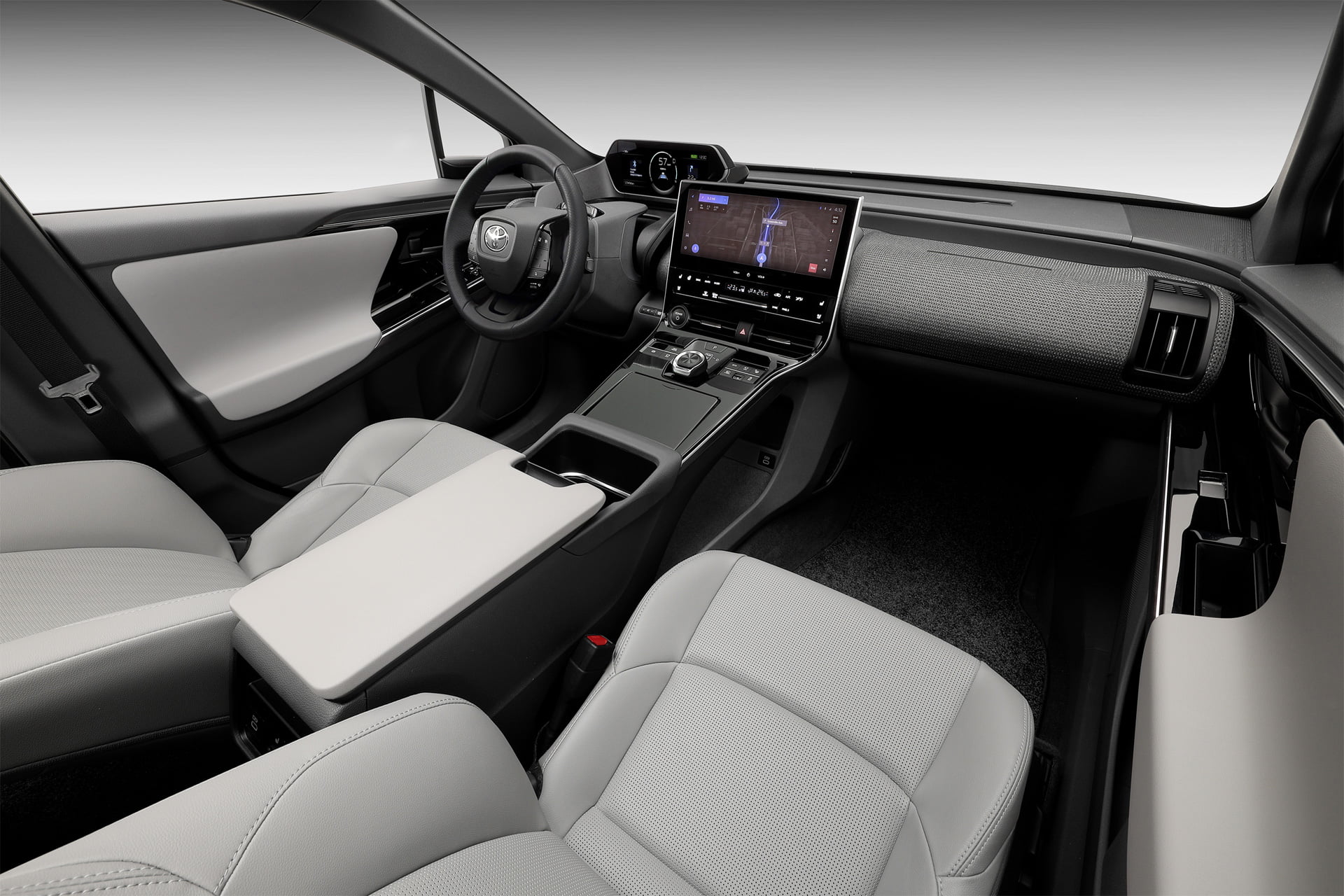

Using a BEV-specific platform, the bZ4X combines a long wheelbase with a short overhang; this results both in a distinctive design, and in an interior space comparable to a D-segment sedan.
A uniquely shaped steering wheel eliminates the need to change grip when steering, and also contributes to a spacious interior; the vehicle adopts a steer-by-wire system that provides a smooth driving feel aligned with the driver’s intentions.
The low position of the instrument panel and the location of the meters above the steering wheel serve not only to enhance the vehicle’s sense of space, but also improve visibility and contribute to safe and secure driving.
The bZ4X adopts a new AWD system jointly developed by Toyota and Subaru; it combines safe and pleasing driving performance―made possible by the unique responsiveness of electrified vehicles―with an impressive off-road performance.

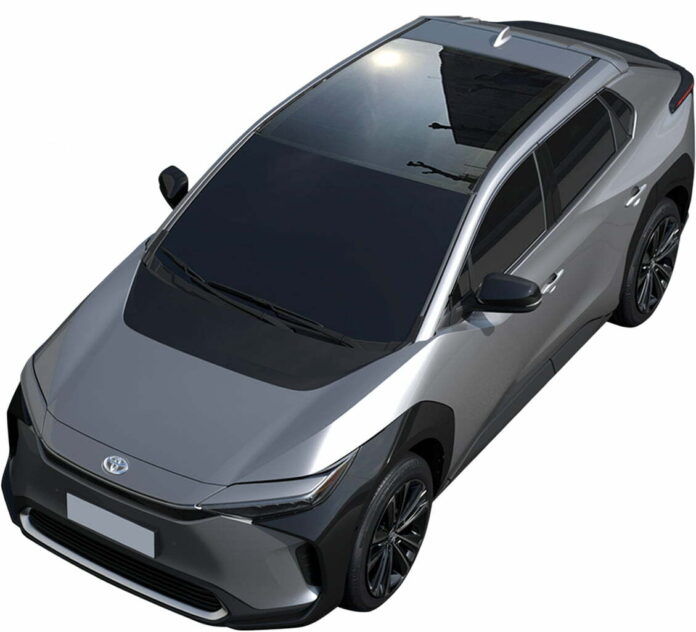

In addition to the use of regenerative energy systems, the vehicle also adopts a solar recharging system; this cleverly recharges the battery while stationary, and further enhances the unique environmental performance of a BEV. It also provides cruising range that ensures customers not to be inconvenienced in wintertime.
Toyota plans to produce the Toyota bZ4X in Japan and China; it hopes to begin worldwide sales of the model by the middle of 2022.
Heat pump-type air-conditioning
Seat and steering wheel heaters, and front-seat radiant foot-heating (first for Toyota)
Compatible with high-output chargers worldwide (compatible with 150 kW direct current quick charging; capable of 80% charge in 30 minutes)
Thin high-capacity battery pack placed flat under the floor
E-axle, integrating motor, transaxle and inverter (a Toyota first)
Electricity Supply Unit (ESU) consolidating charging and power distribution
Hot stamp materials used in key framework parts, adoption of a lightweight, high-rigidity body structure partially made of high tensile steel
Enhancement of rigidity of various parts including around the battery pack, areas where the BEV unit and radiator are installed, and around forward and rear suspension
Agile response, sense of linear acceleration, high-precision output control (Lightening of acceleration/deceleration control and driver pedal operation, slip suppression control on slippery roads, etc.)
Improved turning and stability through independent control of front and rear motors (AWD)
Adoption of Subaru’s AWD technology and X-MODE (AWD vehicle, a first for Toyota). Also, Grip-Control was newly developed and installed as a new feature for X-MODE. By leveraging motor drive characteristics, it is suited to everything from everyday driving to light off-road driving and more, achieving off-road performance exceeding expectations in BEVs

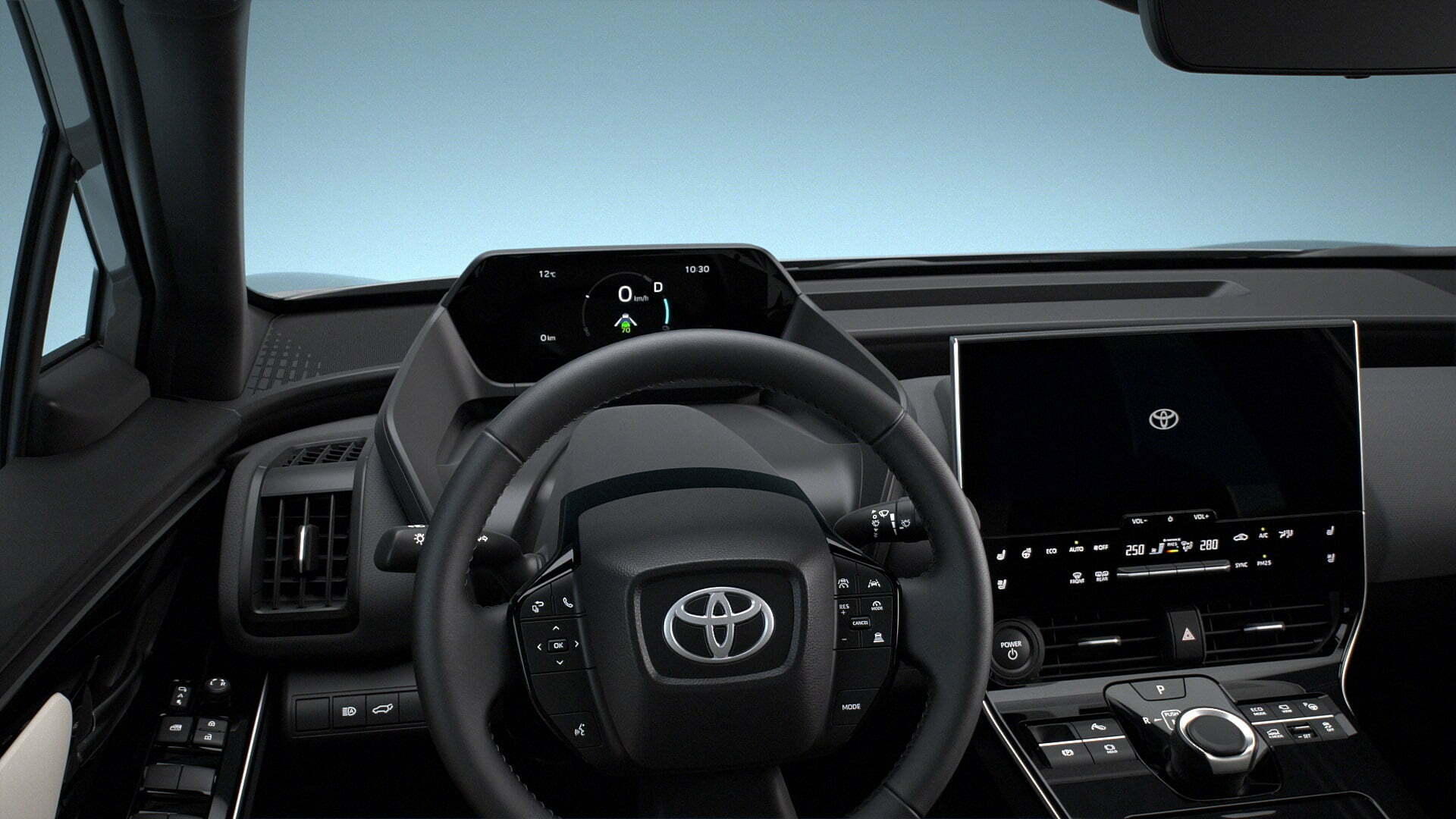

Meters are positioned to be visible through the upper part of the steering wheel (top-mounted meters, a first for Toyota)
Emphasizes ease of viewing by reducing eye movement and enabling a distance point of focus
Modularized driving controls including a steering column, adopting a wing-shape that promotes eye guidance from hands to meters

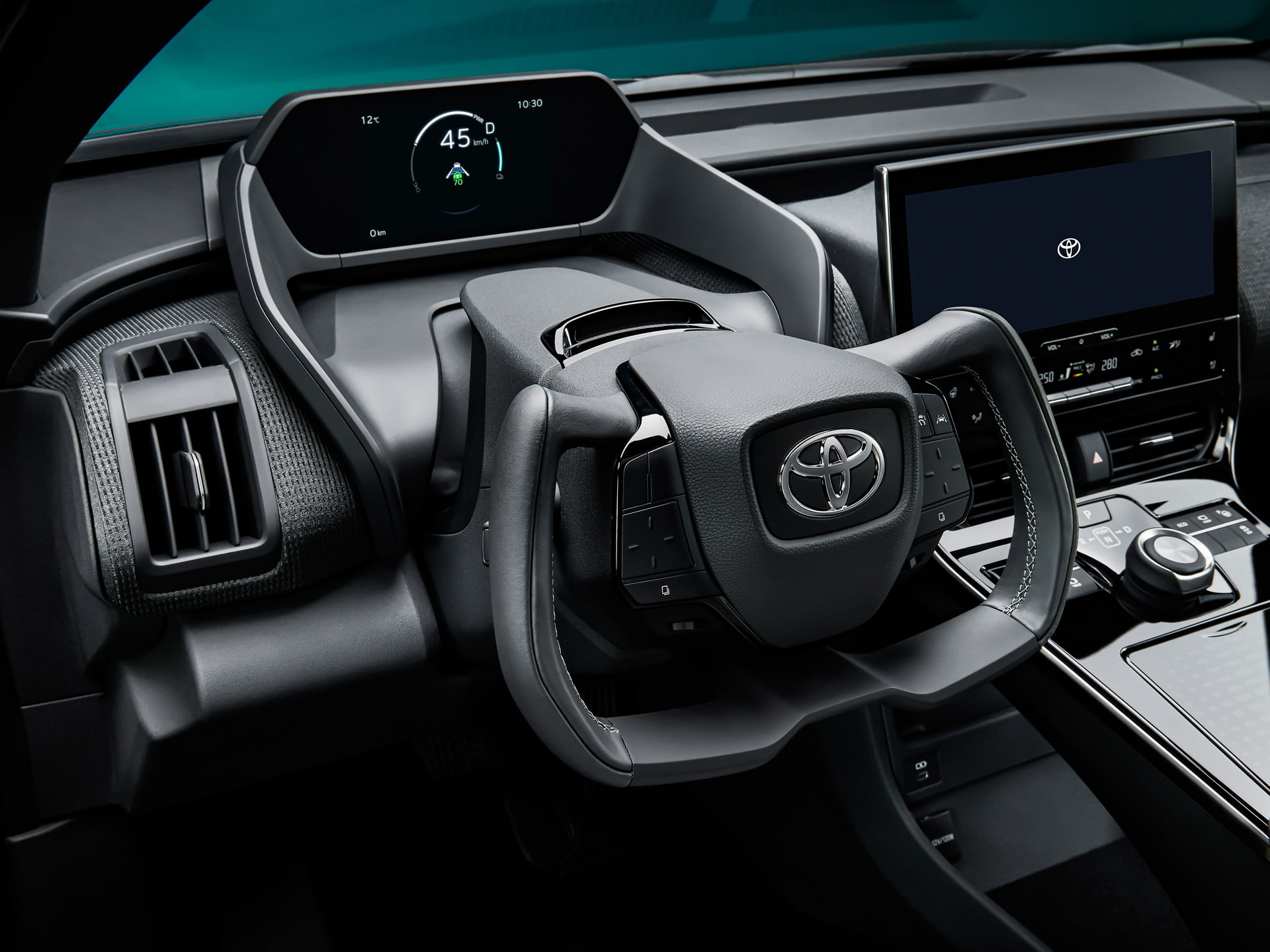

Some models adopt the steer-by-wire system, where there is no mechanical connection between the steering wheel and tires. Characteristics of this are listed below
Lock-to-lock is set at around 150 degrees, eliminating the need to change grips when steering, greatly reducing the burden on the driver for U-turn, garage parking and on winding roads
The steering feeling is improved through independently controlling the steering torque that the driver feels and the steering angle of the tires. Steering characteristics can be changed with drive mode select
Blocks unnecessary vibrations from tires and only transmits necessary vibrations such as road information. System controls tire movement to ensure vehicle stability when driving on uneven surfaces or when Lane Tracing Assist is activated
One-motion grip provides more legroom, improving driving position freedom and ease of entry and exit
For the Chinese market, thereafter, for other markets, it will steadily be fitted on vehicles launched from 2022 onwards
Dial type shift (a first for Toyota)
Multimedia system
The bZ4X adopts cloud navigation that uses map information on the cloud to obtain traffic information and parking space availability information in a timely manner. Additionally, BEV specialized services such as driving support, charging station display, driving support display, and driving range display are available
Enhanced voice-recognition function
Also able to operate wipers and air-conditioning
Over-the-air (OTA = wireless) software updates
Software updates to improve performance are possible for the latest preventive safety package, Toyota Safety Sense, and the multimedia system without needing to visit a dealership
Digital Key (specially equipped vehicles)
With a smartphone, users can lock, unlock and start the system without screen operation. Digital keys can be handed over between smartphones, making it easy for family and friends to borrow and lend vehicles remotely
Generates electricity equivalent to 1,800 km of driving distance per year (in-house estimate), contributing to superb cruising range. Can charge in parking lots where there are no charging stations, and solar power can be used to charge in disasters or other emergencies
By strengthening measures to prevent and detect signs of battery failure, and introducing new technologies, have adopted a design and multiple monitoring system that ensures safety and security in case of emergency
Thorough production process that eliminates contamination, which is a cause of abnormal heating
Redundant monitoring of battery voltage, current, and temperature to detect signs and occurrence of abnormal heating to prevent overheating
Newly introduced the use of high-resistance coolant, which prevents fire from short circuits even if there is leakage of the battery’s liquid coolant
Newly introduced the use of a high-capacity battery pack integrated with the body to ensure protection in the event of a collision
